Venuro 3 max

scroll down

Spaces become
limitless.

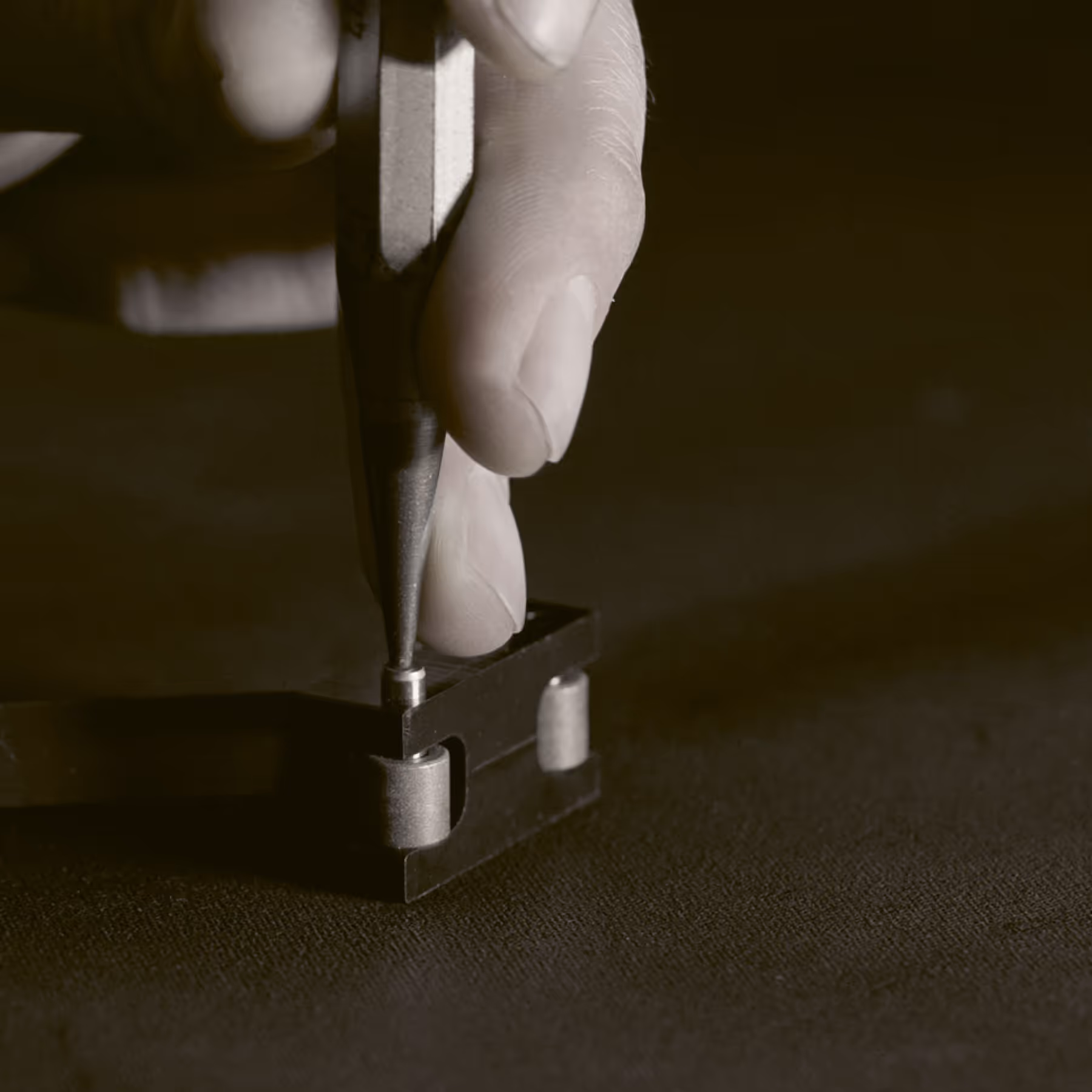

Unrivalled craftsmanship.

Architectural masterpieces are developed in our Swiss manufactory with decades of experience and manufactured with precision and dedication to detail.

High-performance
materials

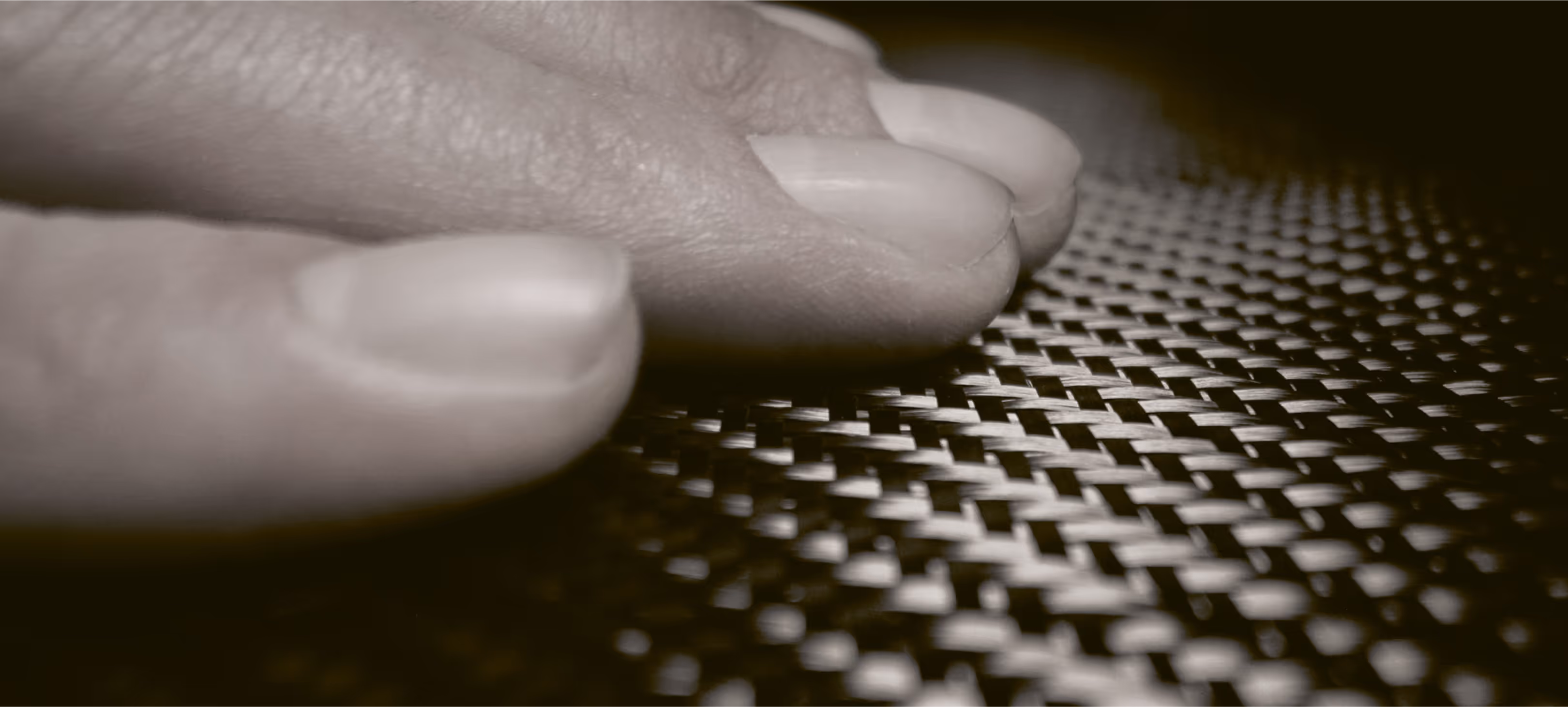

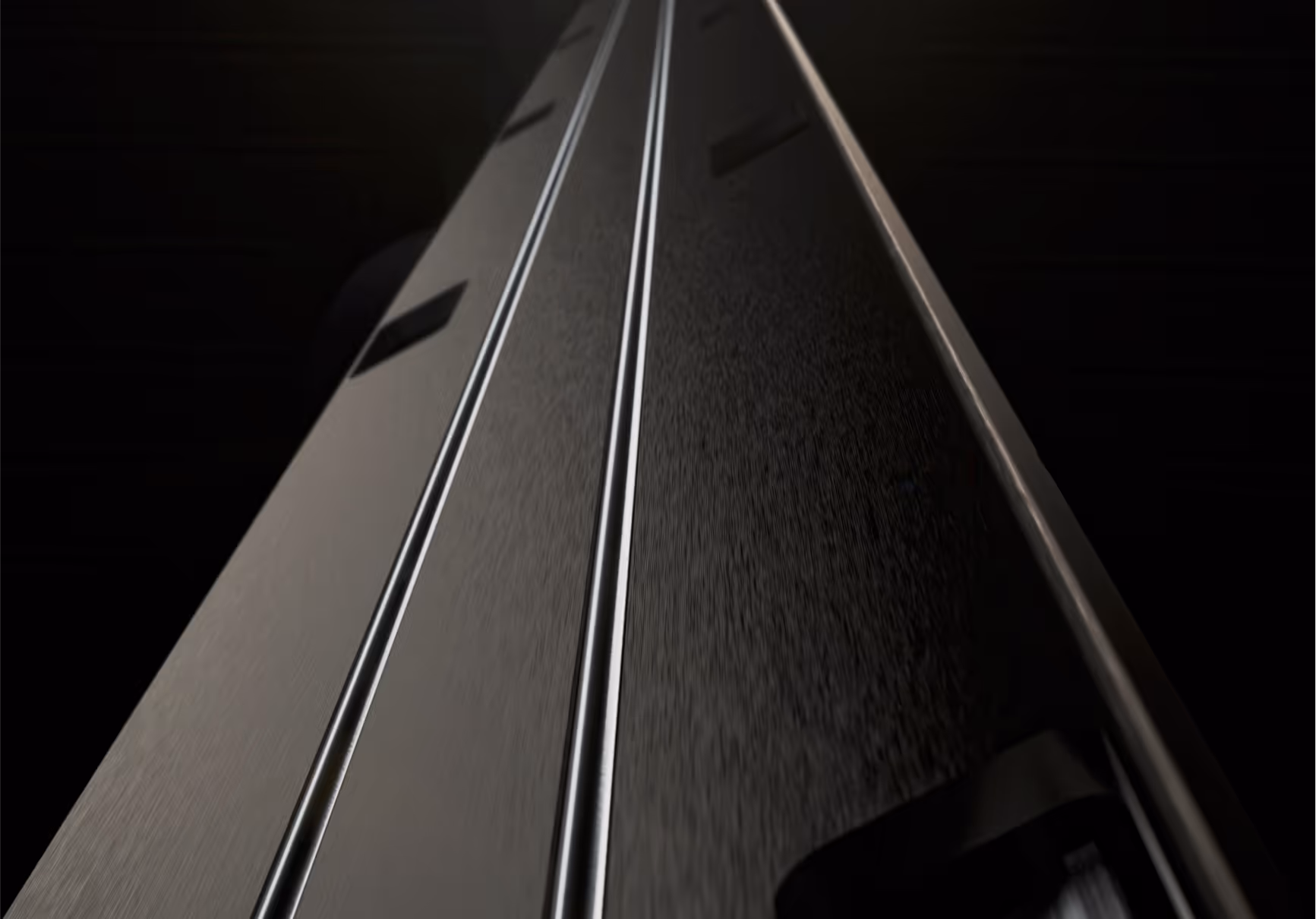

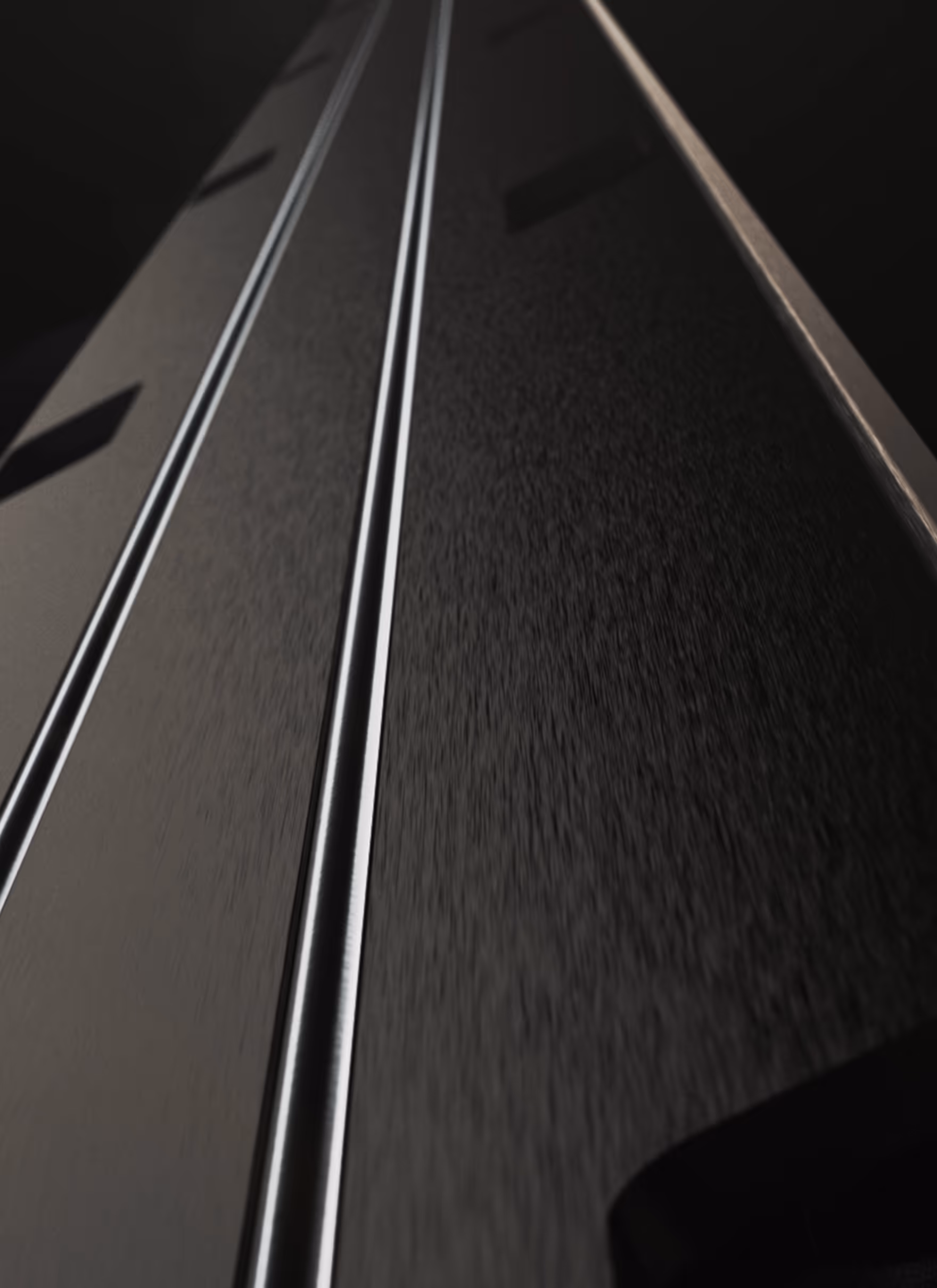

The outer and vent profiles are made from continuous insulation material.

As a high-performance material, fibreglass has the special property of high strength with low weight. By using this material, a long service life can be achieved without maintenance - a sliding window for eternity.

Flowing transitions,
clear lines and light-flooded rooms

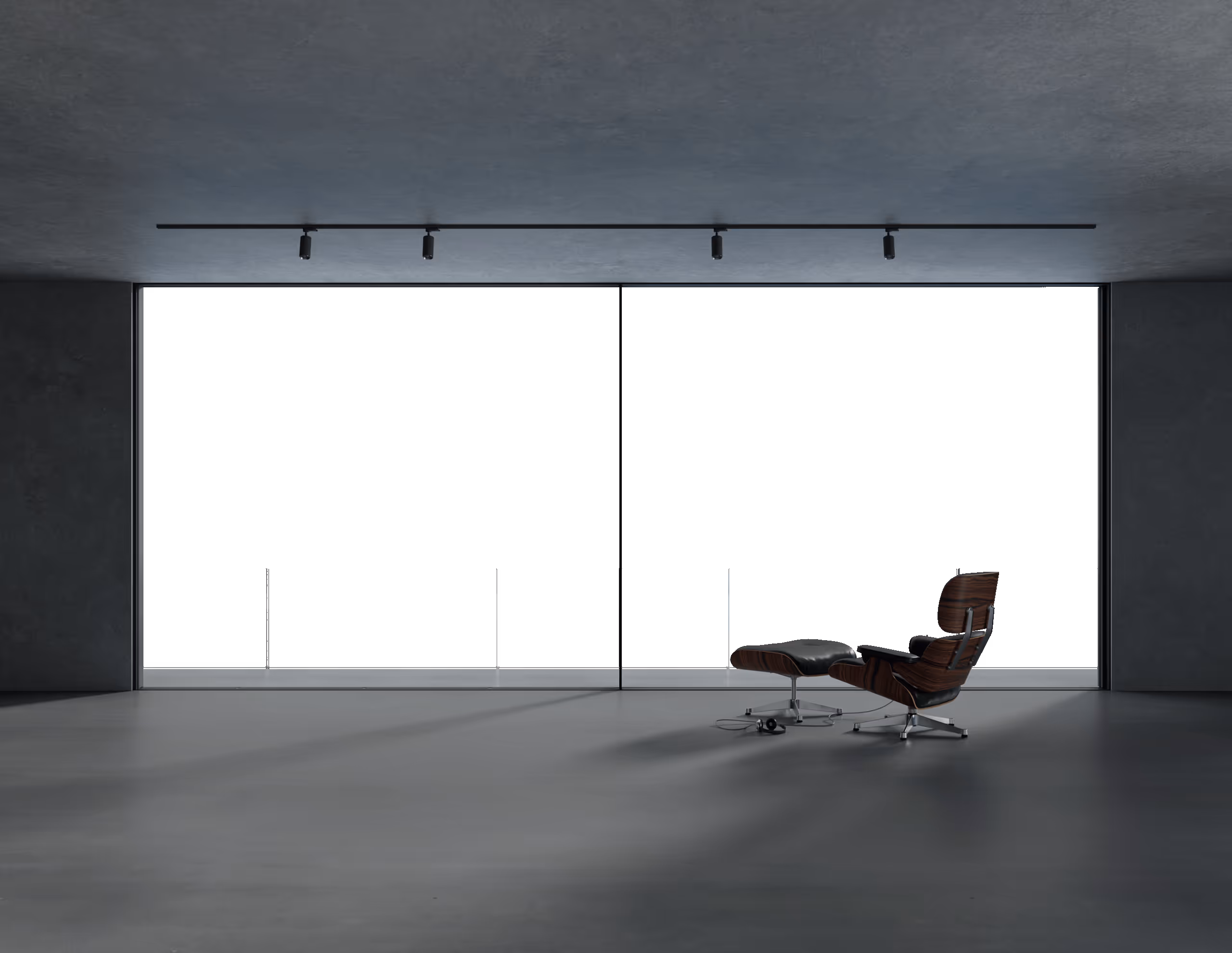

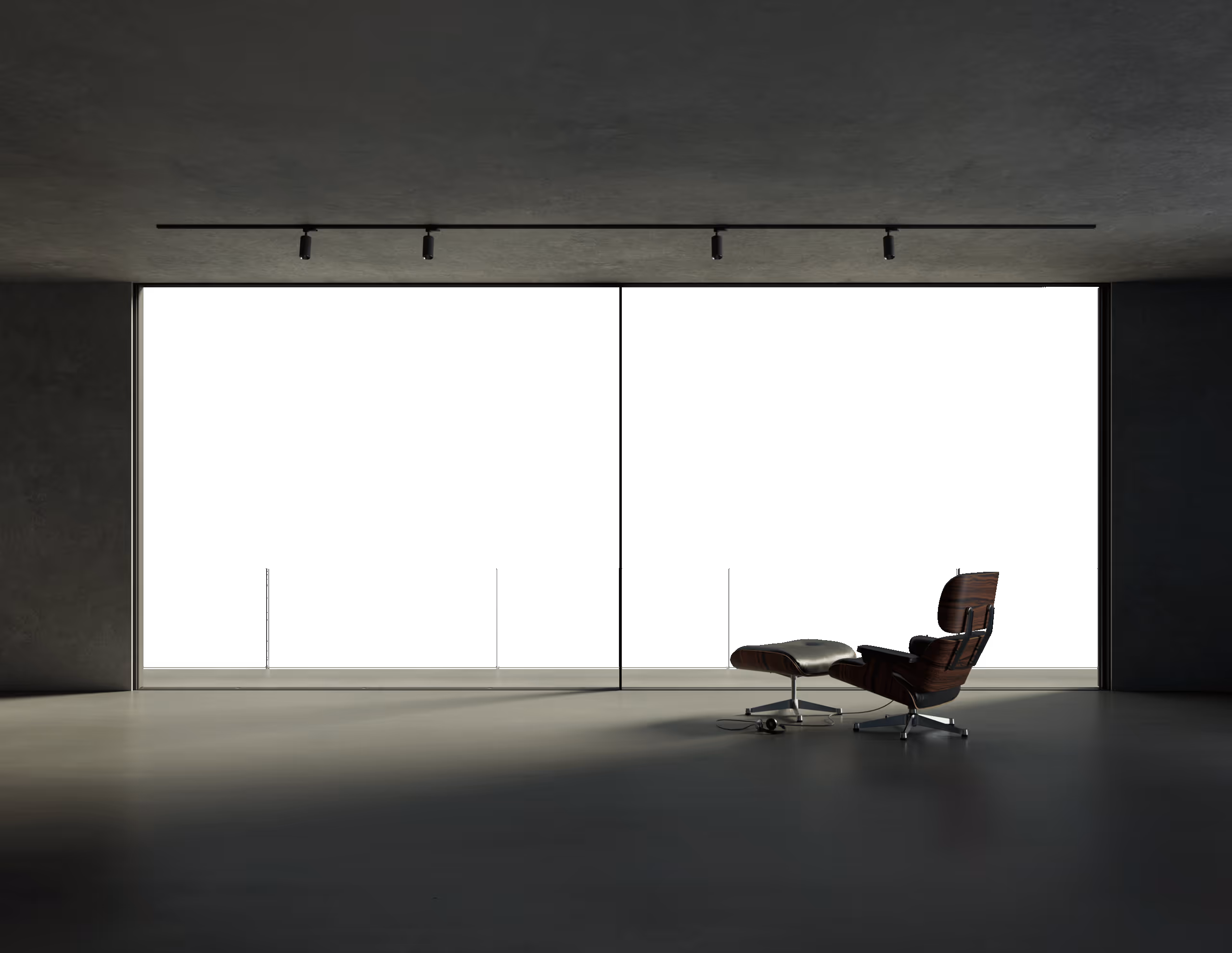

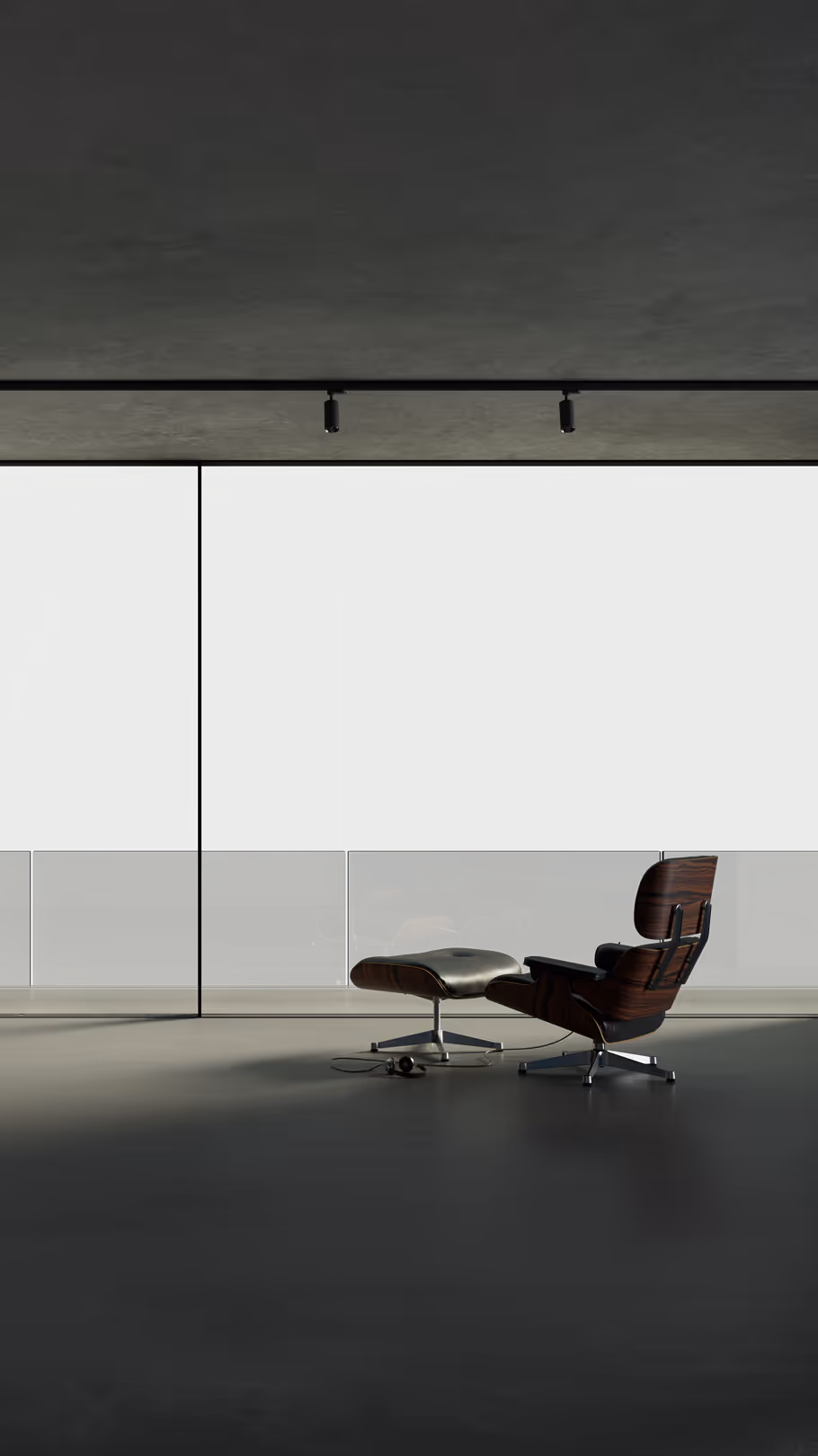

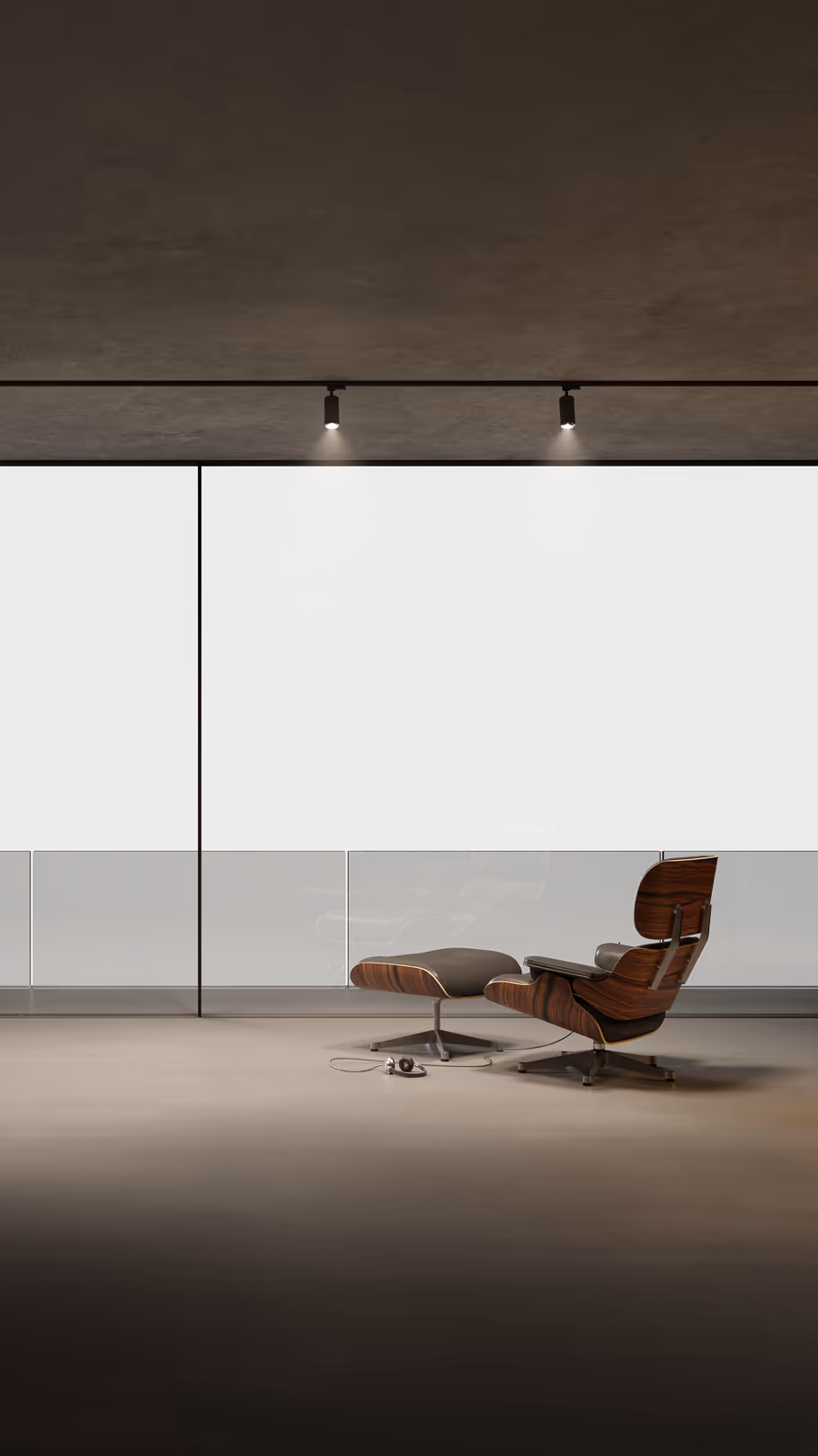

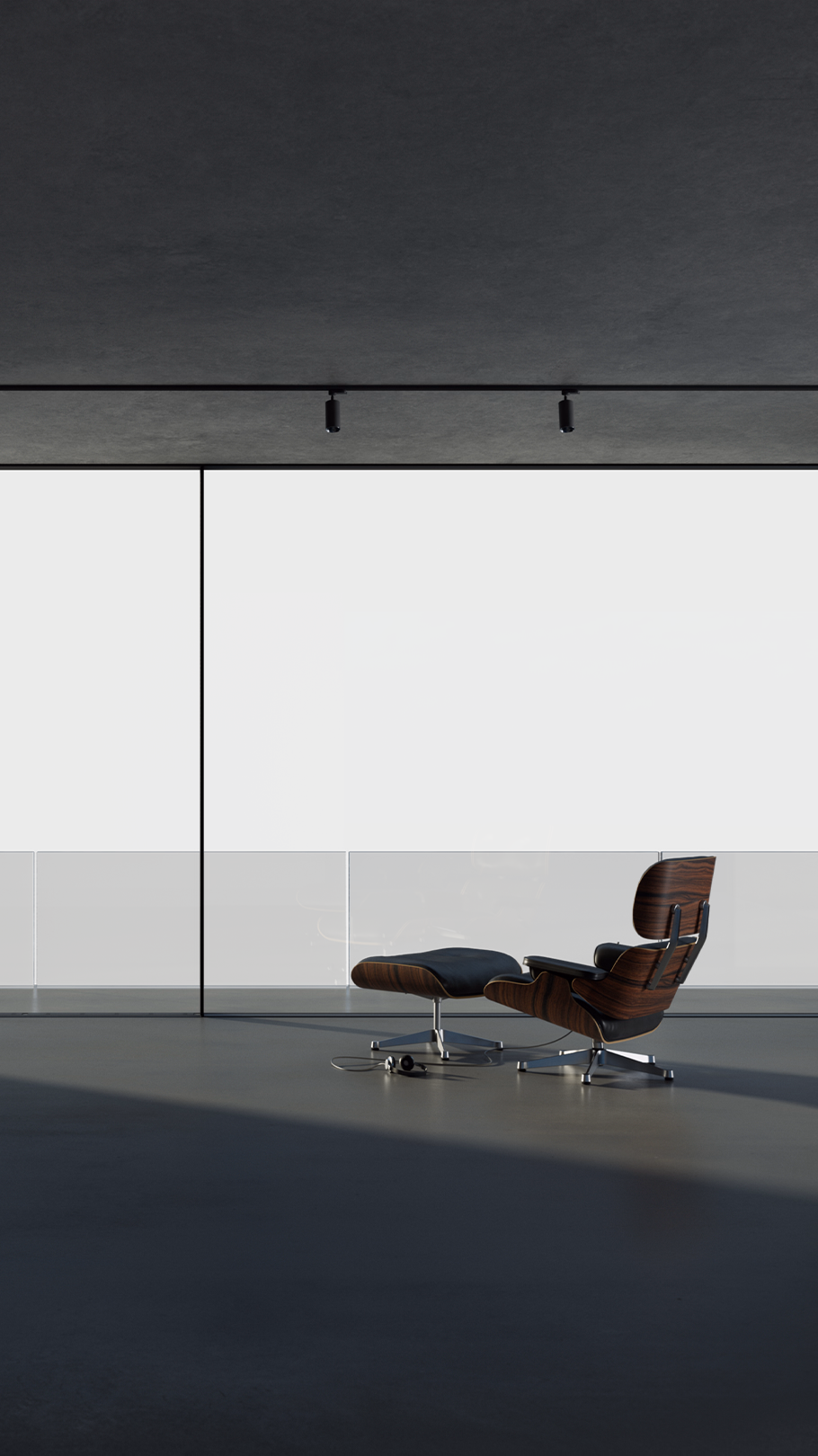

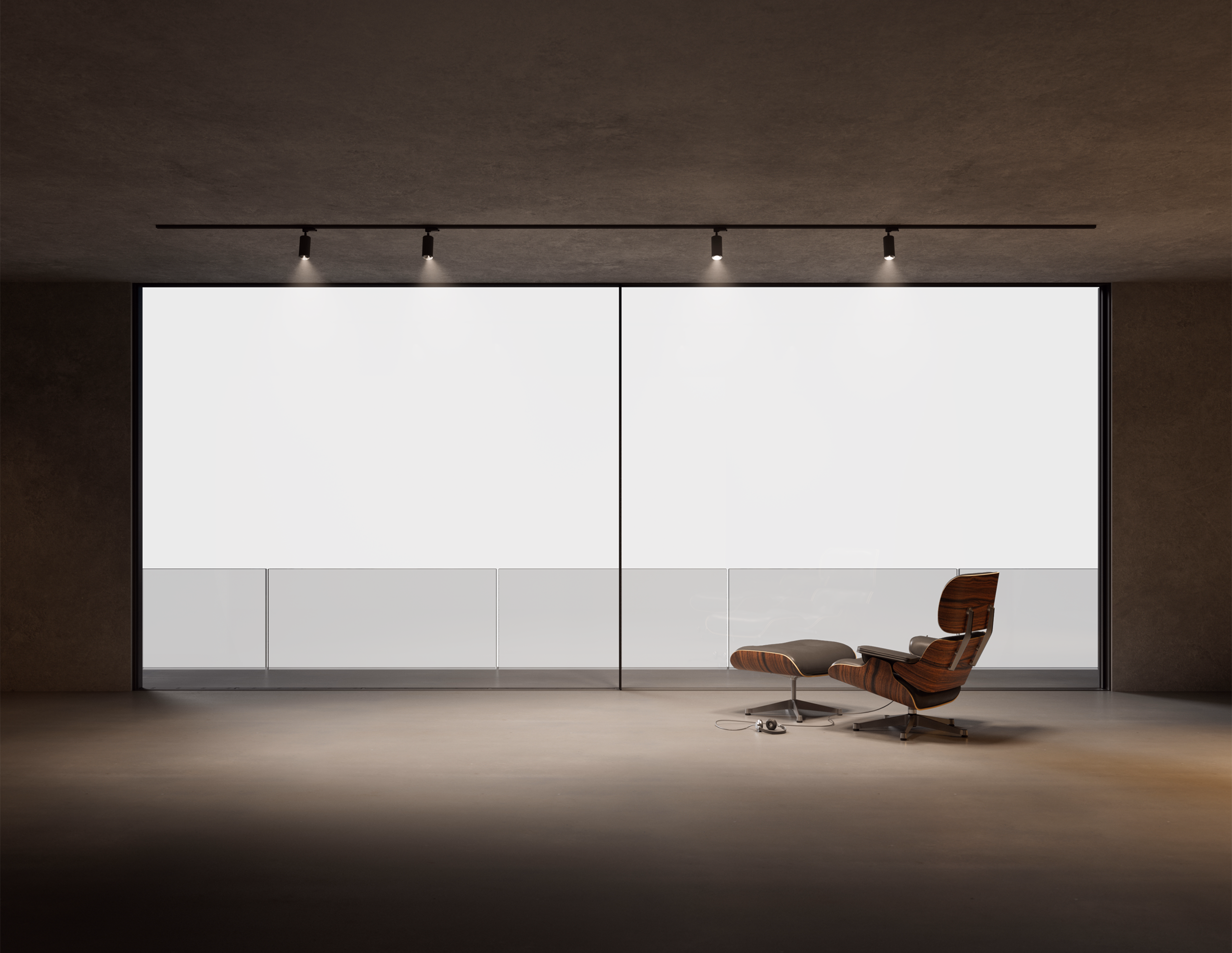

With their exceptional design and excellent physical properties, Venuro Sliding Masterpieces are timeless. A gentle movement that transforms the room. The window not only blends into the room, but also gives it a breathtaking glow thanks to its refined functionality and timeless, elegant design.

Sliding windows and the harmony with nature

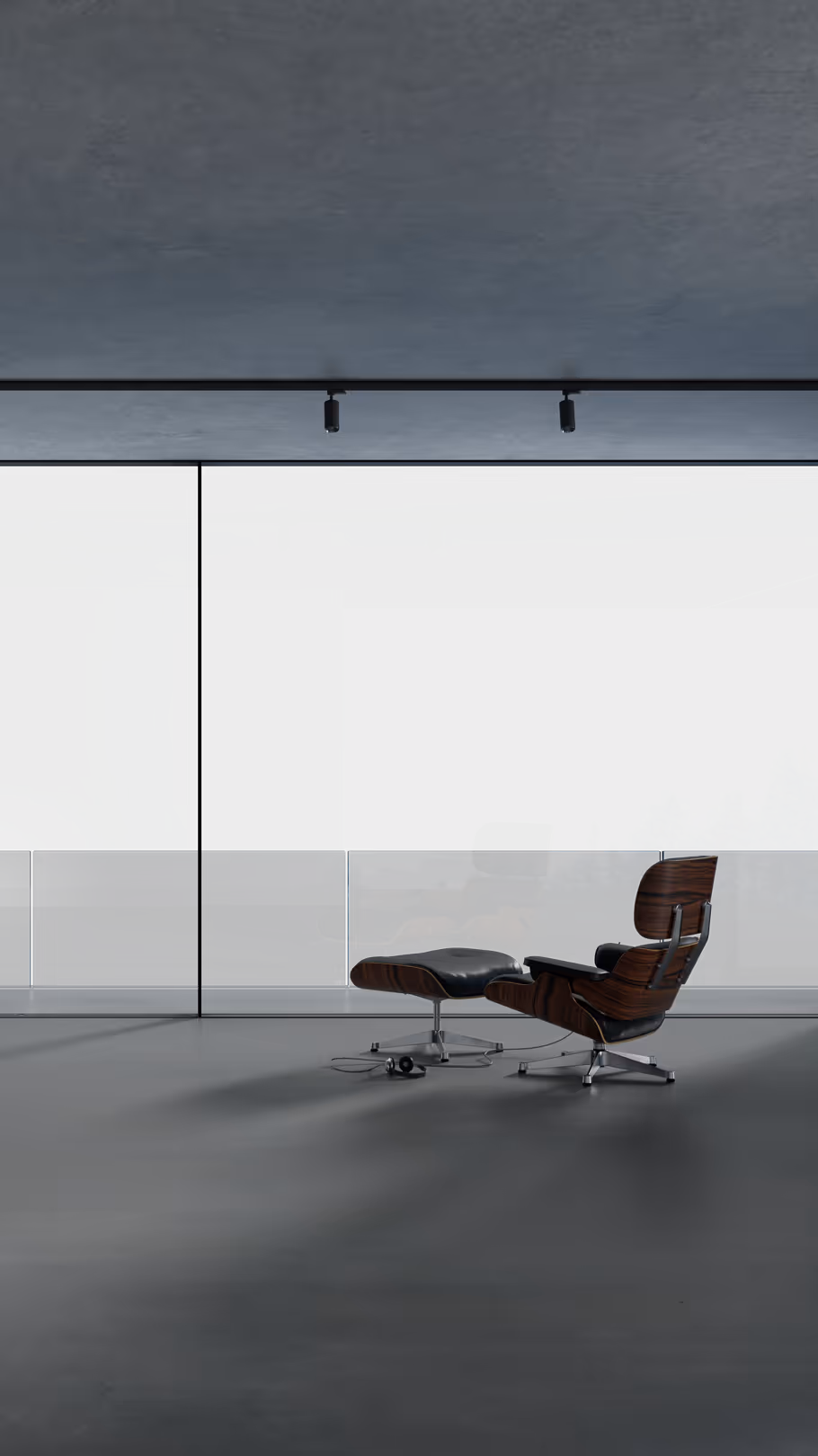

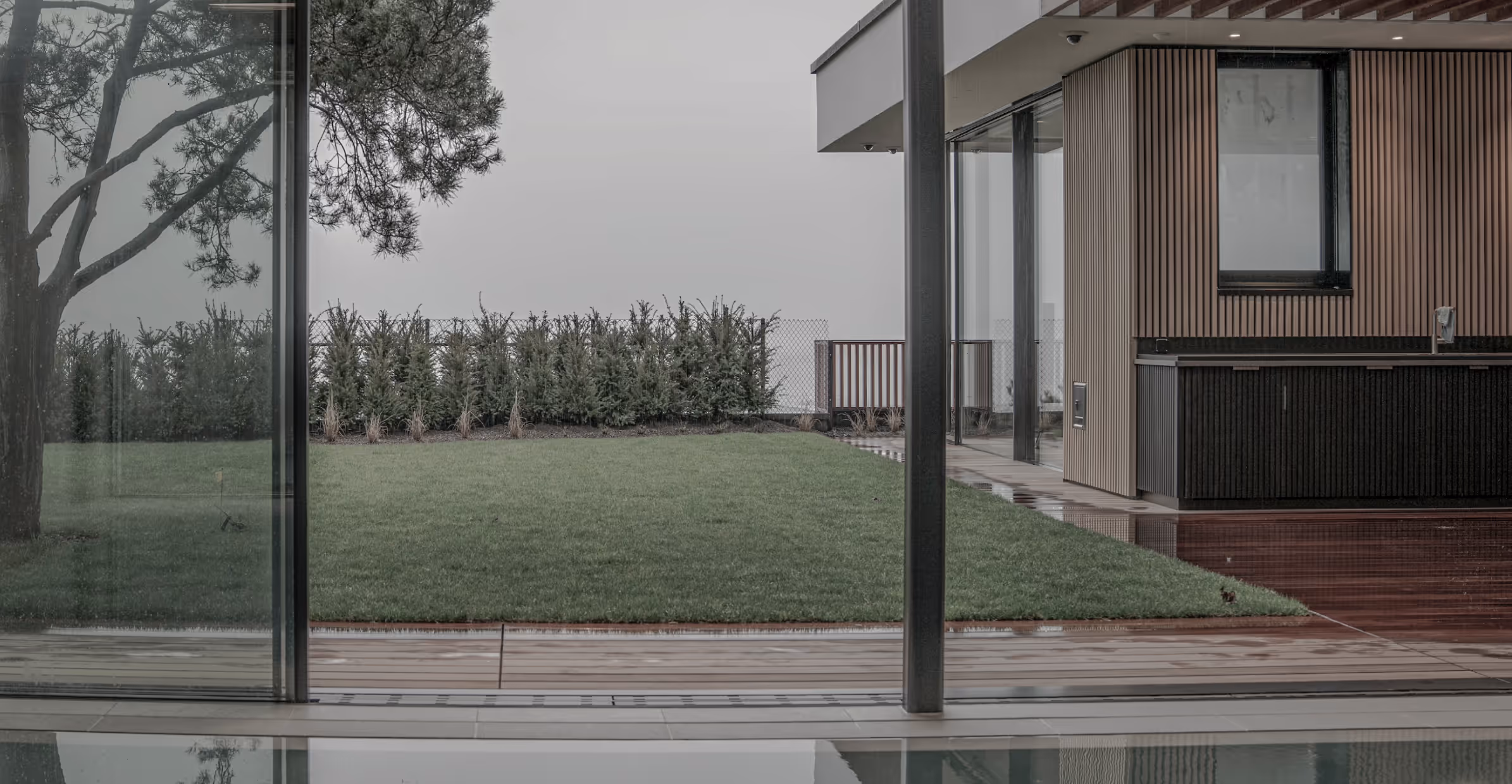

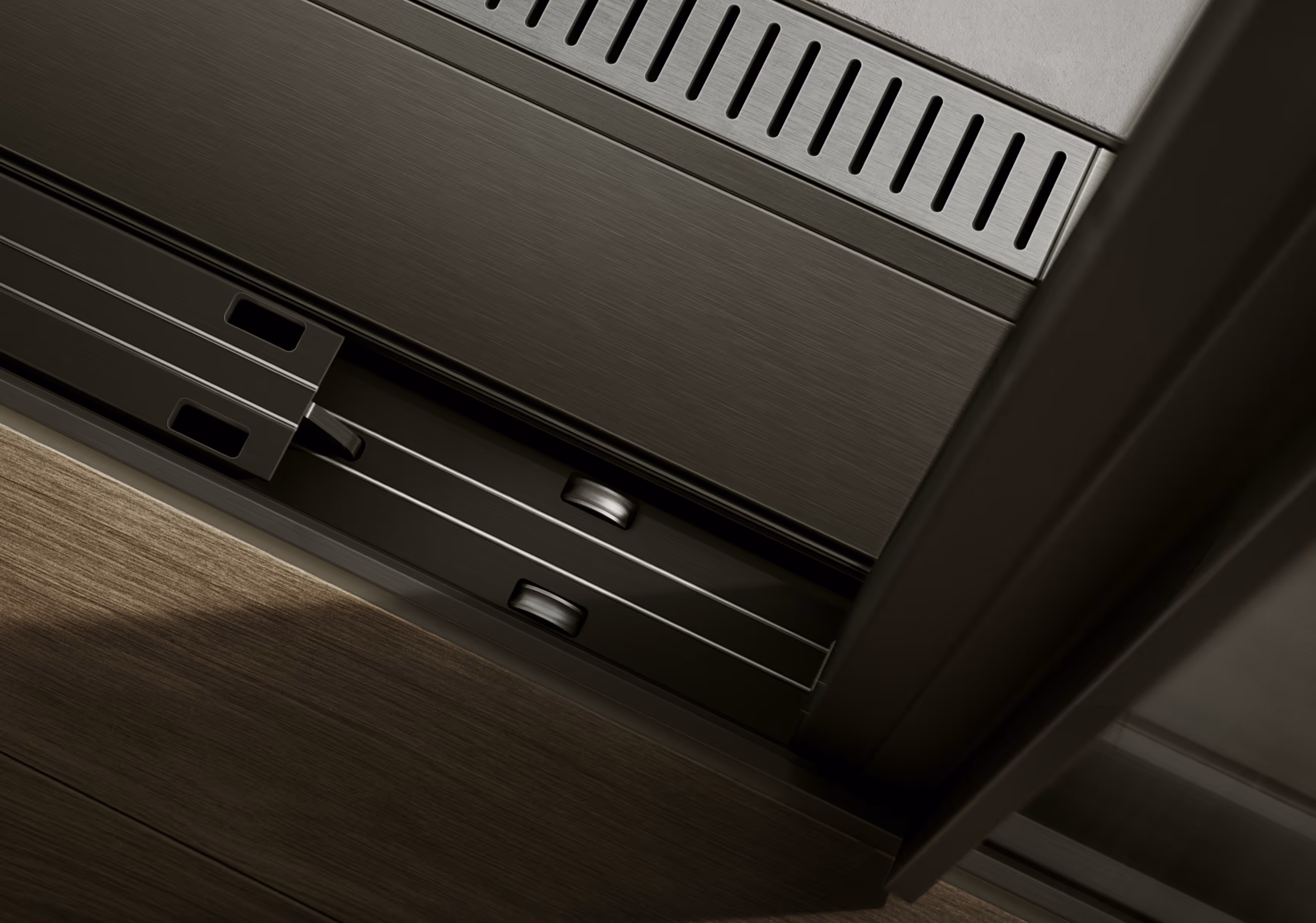

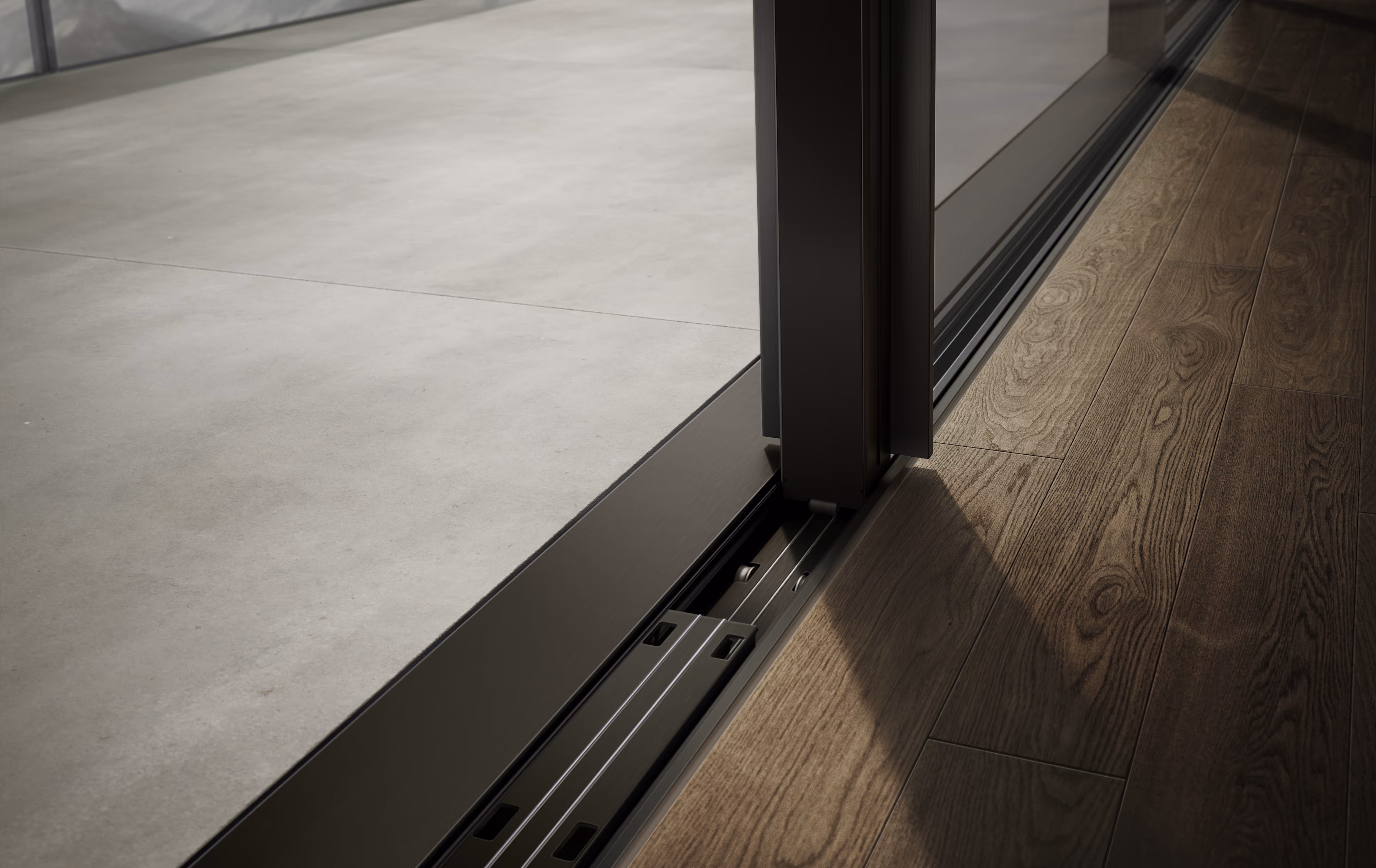

Infinity width. The patented Venuro threshold is floor-level and therefore 100% barrier-free. Enjoy breathtaking views of freedom with maximum safety. A living experience that combines nature and architecture. Our frameless sliding window lets in light and air, but also the “soul” of the outside space: the view of the sky, the trees, the touch of the wind.

Technical details

Venuro 3 max
Uw-Value
<0.65 W/m²K possible
Watertightness
up to class E750, EN 12208
Air permeability
up to class 4, EN 12207
Resistance to wind load
up to class C5 / B5, EN 12210
Burglar resistance
up to RC3
Sound reduction index
up to 47 dB
Minergie certification
yes
E-drive
yes
Flyscreen
yes
Glass thickness
52 – 62 mm
Profile height
90 mm
Construction depth
Single-track
100 mm
Double-track
200 mm
Triple-track
300 mm
Quadruple-track
400 mm
Broschüre (DE)
Download (PDF)
Brochure (EN)
Download (PDF)

Architekten streben stets nach dem, was noch nie zuvor realisiert worden ist.  Ich bin selbst Architekt und verstehe ihre Sprache und Herausforderungen, die sie bei ihren Projekten haben. Ich begleite sie und helfe ihnen dabei, die richtige Lösung zu finden.

Diogo Alves de Matos | Architekt, Head of Sales International | Venuro AG

Air permeability: up to class 4, EN 12207

Minergie certification, electric drive and integrated insect screen

Resistance to wind load: up to class C5 / B5, EN 12210

Watertightness: up to class E750, EN 12208

Uf-value of 0.9 W/m²K

Uw-value of less than 0.65 W/m²K possible

High corrosion resistance

Sound reduction index: up to 47 dB

Immerse yourself in the world of Venuro

Request access now and receive exclusive content such as technical documentation, drawings and planning documents for architects, metal fabricators and general contractors.

Request access
Learn more
about our materials

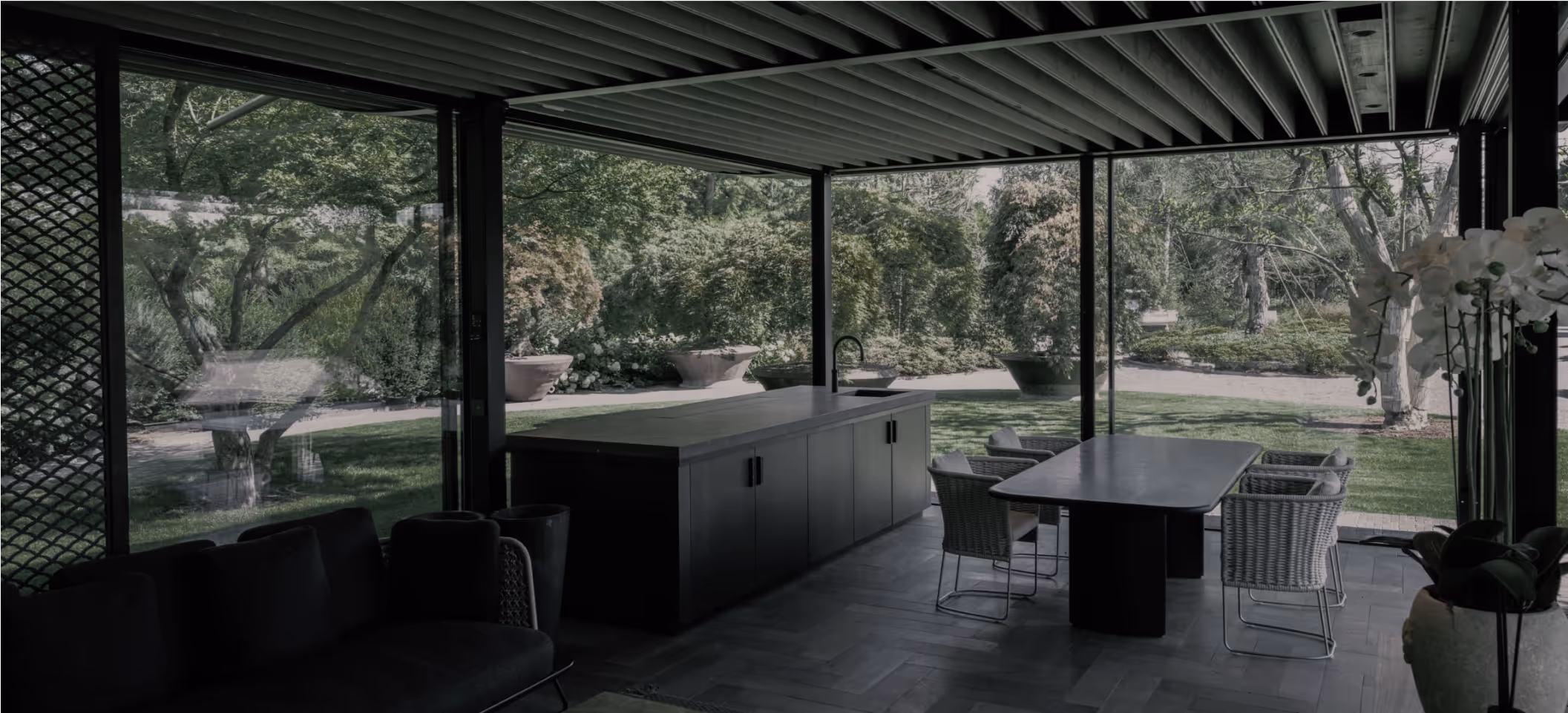

Book a rendezvous
